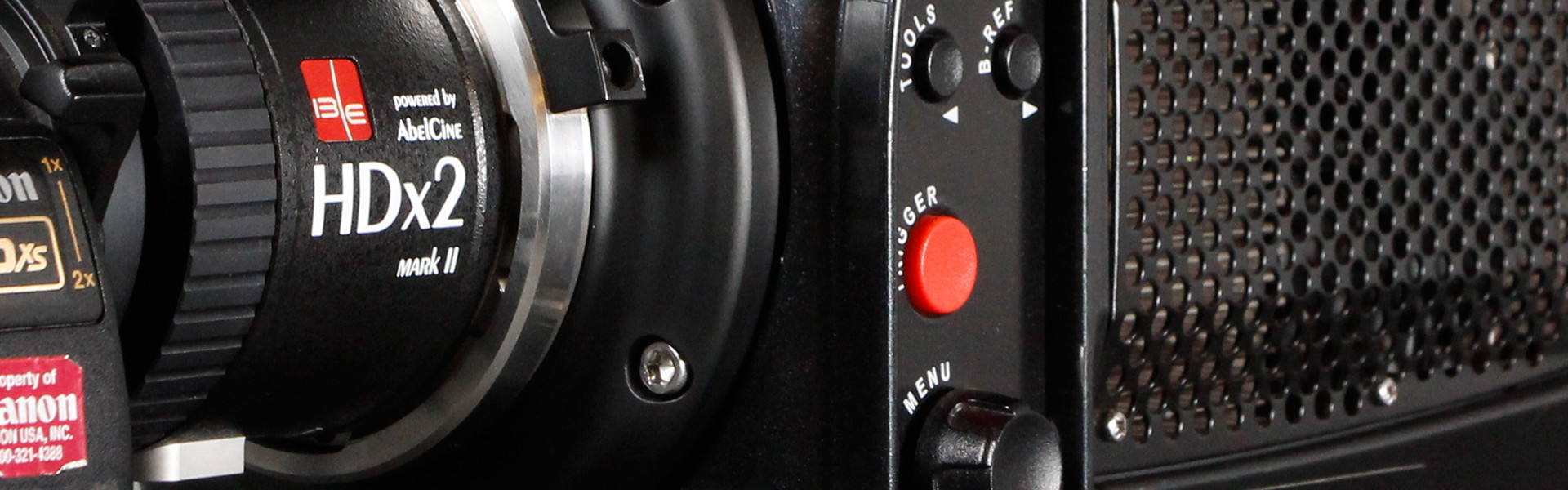

Header image for article HDx Optical Adapter Compatibility

HDx Optical Adapter Compatibility

The HDx35 Mark II and Hx2 Mark II have been designed for AbelCine by IB/E Optics to enable B4-mount lenses to work with large sensor cameras. On this page we have compiled a list of cameras that are compatible with each adapter.

HDx35 Mark II Optical Adapter

Minimum Image Circle Projection: 30.2 mm

Camera Frame Diagonal
Arri ALEXA (4x3) 29.7 mm
Canon C100 28.2 mm
Canon C300 28.2 mm
Canon C500 28.2 mm
Phantom Flex (2560x1440) 29.4 mm
Phantom v641 (2560x1440) 29.4 mm
Phantom v642 (2560x1440) 29.4 mm
Phantom HD Gold (2048x1112) 29.1 mm
RED One (4K 16x9) 25.4 mm
RED Epic (5K 16x9) 29.7 mm
RED Scarlet (5K 16x9) 29.7 mm
Sony F3 27.1 mm
Sony F35 27.1 mm
Sony F65 27.1 mm
Sony FS100 27.1 mm
Sony FS700 27.1 mm
Sony SRW-9000PL 27.1 mm
Sony F5 25.9 mm
Sony F55 25.9 mm



HDx2 Mark II Optical Adapter

Minimum Image Circle Projection: 25.5 mm

Camera
Frame Diagonal
Blackmagic Design Cinema Camera 18.1 mm
Panasonic AF100 21.6 mm
Phantom Flex (1920x1080) 22.0 mm
Phantom v341 (1920x1080) 22.0 mm
Phantom v641 (1920x1080) 22.0 mm
Phantom v642 (1920x1080) 22.0 mm
Phantom Miro M120 22.0 mm
Phantom Miro M320S 22.0 mm
Phantom Miro LC320S 22.0 mm
RED One (3K 16x9) 19.0 mm
RED Epic (3K 16x9) 19.0 mm
RED Scarlet (3K 16x9) 19.0 mm
AbelCine Team
Our Technical Specialists contributed to this blog.
