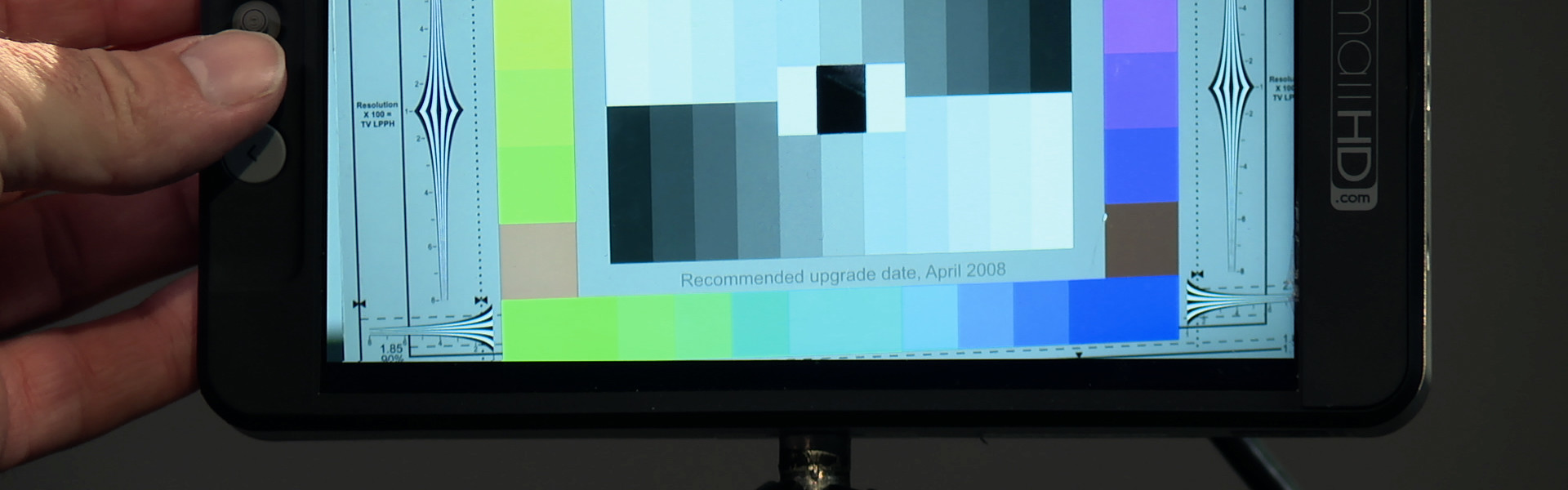

Header image for article At the Bench: Setting Up the SmallHD 702 Monitor

At the Bench: Setting Up the SmallHD 702 Monitor

SmallHD on-board monitors have become a staple of the industry. In this blog, I will walk you through the menu structure of the SmallHD monitors -- specifically the 702 -- so you can customize your monitor to work exactly as you need it.

Pages or screen views can be set with as many or as few features as you like. In addition, features can be custom-tailored to your needs. For example, the waveform dimensions can be set, as well as where the waveform displays on the screen. Intensity and opacity can be toggled as well. The monitors also come with LUTs installed for all major manufacturers' LOG gammas, along with the ability to load your own in via SD card. On top of all these features, the SmallHD monitors deliver stunning picture quality.

If you're in New York and want to learn more about the entire SmallHD lineup, don't miss our upcoming Demo Day on March 14!

Ian McCausland
Camera Technology Specialist, AbelCine LA
